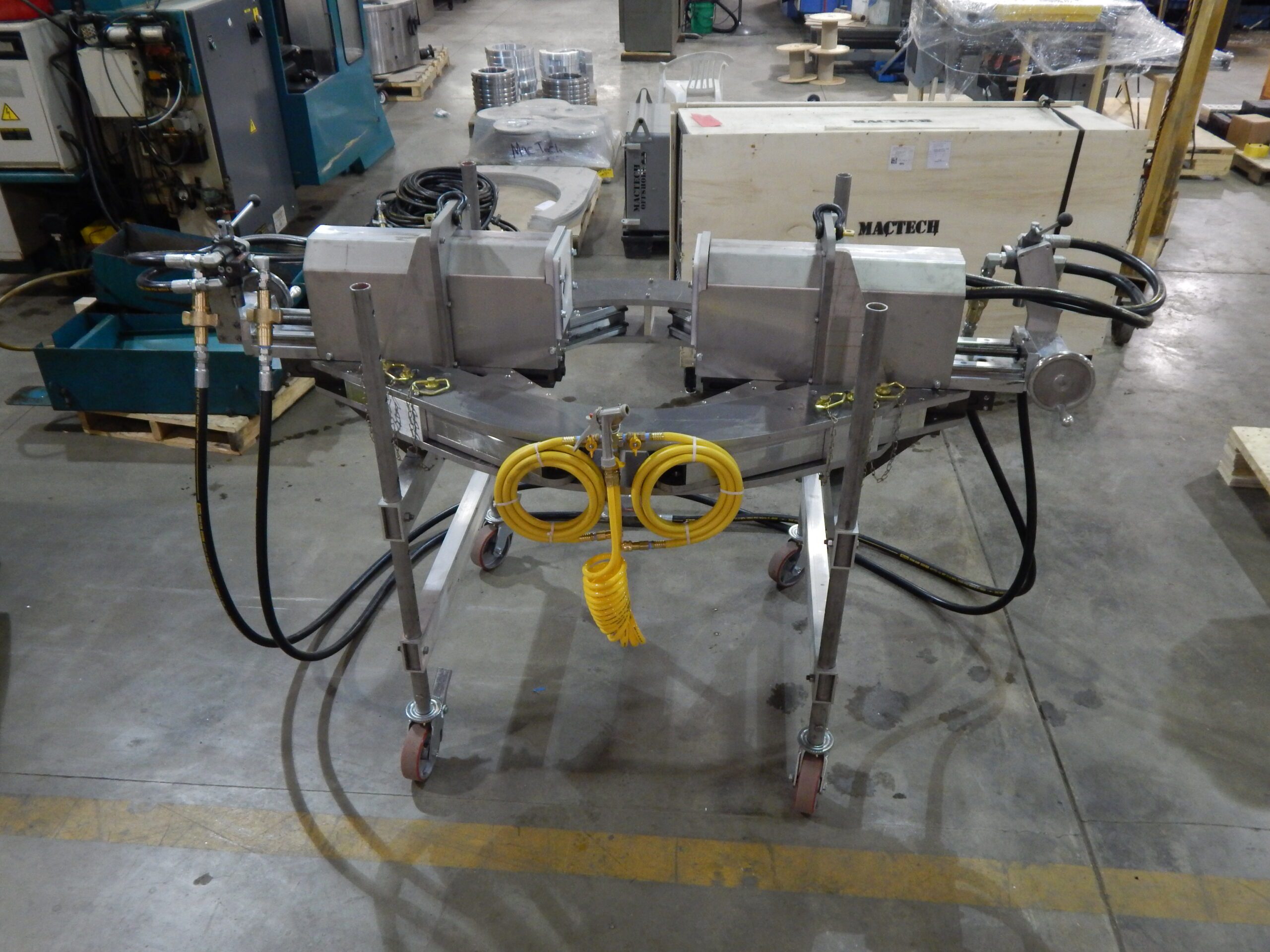

Mactech’s industrial dual pin drill is built for speed on big casing jobs, reaching up to 394 rpm for speedy, clean cuts on diameters ranging 6 to 36 inches. With two hydraulic motor options, you can choose high-speed drilling or 390 ft-lbs. of torque for cuts that need more muscle. And its thru-spindle coolant system clears debris as you go, so you’ll never sacrifice tool life for pace.

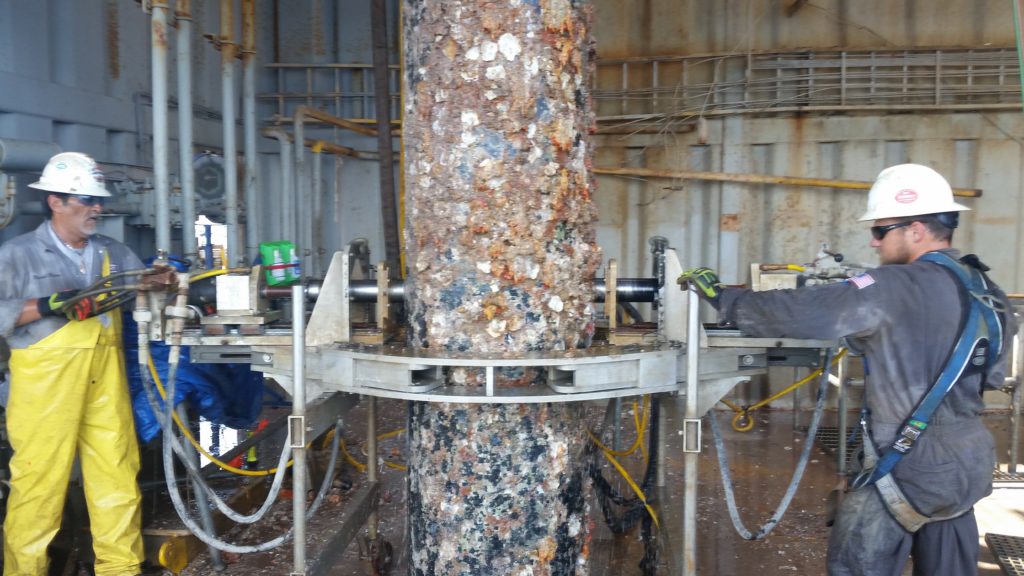

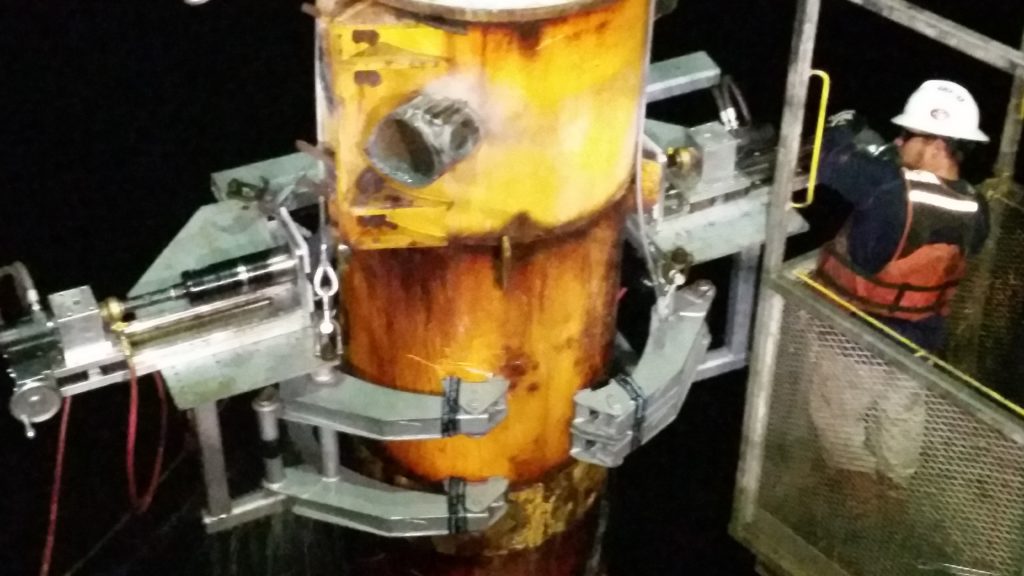

Dual drills let you cut from both sides simultaneously, anchored by a dual-pin setup that locks everything in place for offshore rigging and structural steel. With the power to tackle subsea infrastructure and heavy equipment, you’ll avoid repositioning hassles to get the job done quickly.
Minimum Pipe Diameter
6″
(152mm)
16″
(406mm)
Maximum Pipe Diameter
18″
(457mm)
36″
(914mm)
Stroke
21″
(533mm)
Feed Rate per Handwheel Revolution
0.10″
(2.5mm)
Length
51″-65″
(1295-1651mm)
93″-115″
(2362-2921mm)
Width
39″-50″
(990-1270mm)
Height
61″
(1549mm)
