Stresstech QZ500-4

Portable heat treating machine

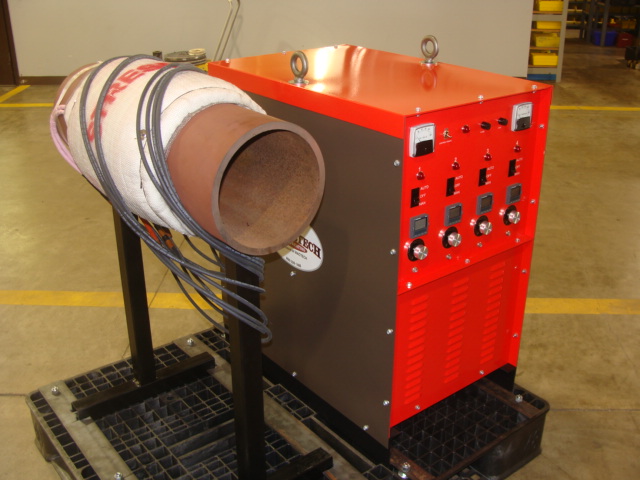

This portable Stresstech heat treating console provides 500 amps of power at 80 volts DC to four independent heating zones. Each 500-amp zone features its own ramping temperature controller, so you can run multiple profiles at once. Easy to maintain and designed for real-world use, the QZ500-4 is built to keep you moving.

features
Brochure and Spec Sheets
accessories

Operator-friendly and easy to maintain

The QZ500-4 portable heat treating machine puts operator ease front and center. With solid-state controllers and no moving parts, you can count on less wear and tear. Quick access to the 500 AMP contactors keeps maintenance hassle-free. And user-friendly controls let you enter your “SOAK” temperature and get to work without the usual delays, keeping downtime to a minimum.

Key Features

  • 500 AMPS of power at 80 volts DC across four independent zones for versatile heat treating
  • Ramping temperature controllers in each zone for running different profiles simultaneously
  • Removable control drawer for easy calibrating and maintenance — no need to ship the whole unit

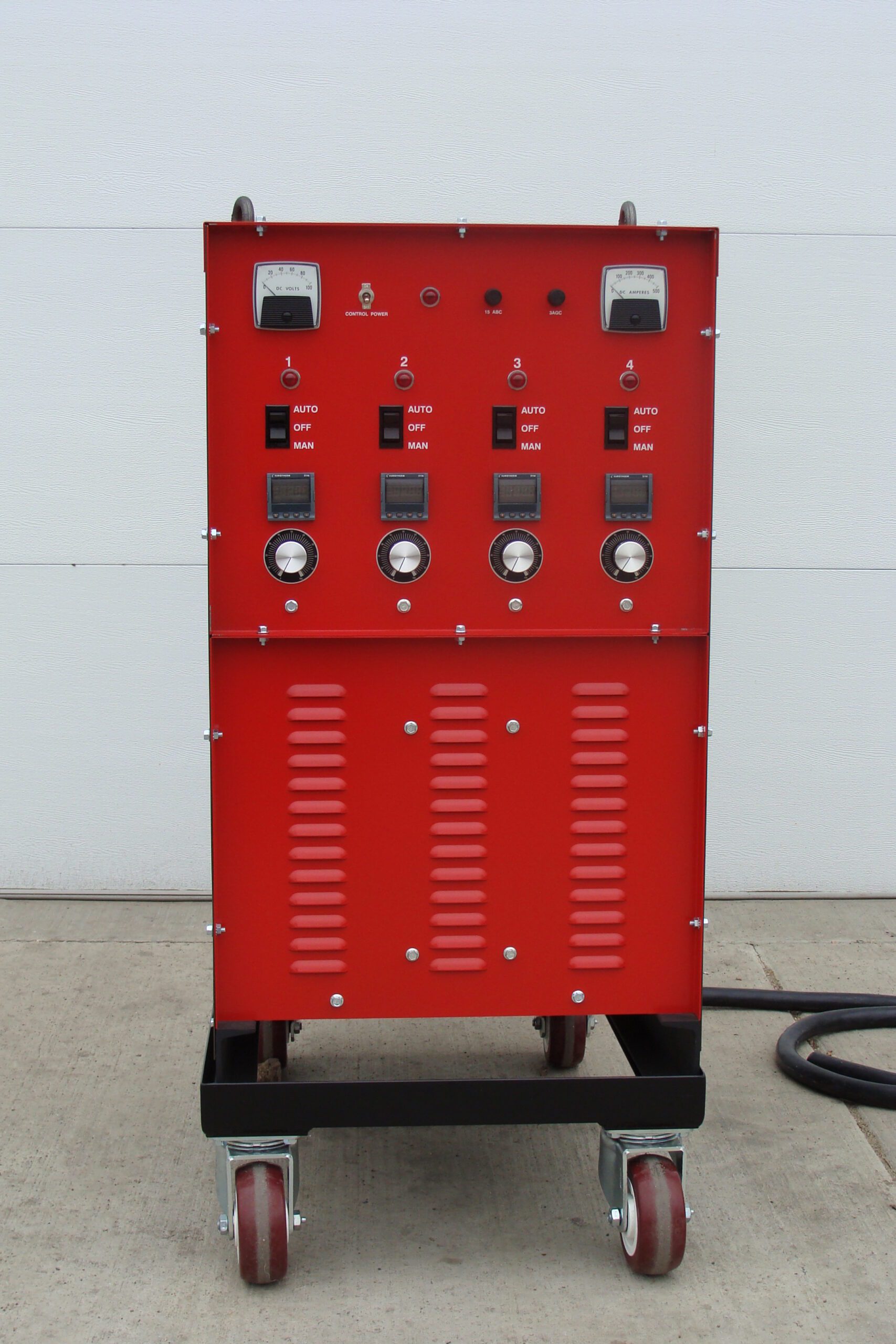

  • Easy-to-monitor setup with indicator lights showing energized zones
  • 500 DC ammeter with selector switch for tracking the load on each zone with ease

Accessories

  • Cables

  • Insulating Blankets

  • Stressflex Pads

  • Temperature Controllers

  • Temperature Recorders

  • Zap Gun
