(55” to 229”)

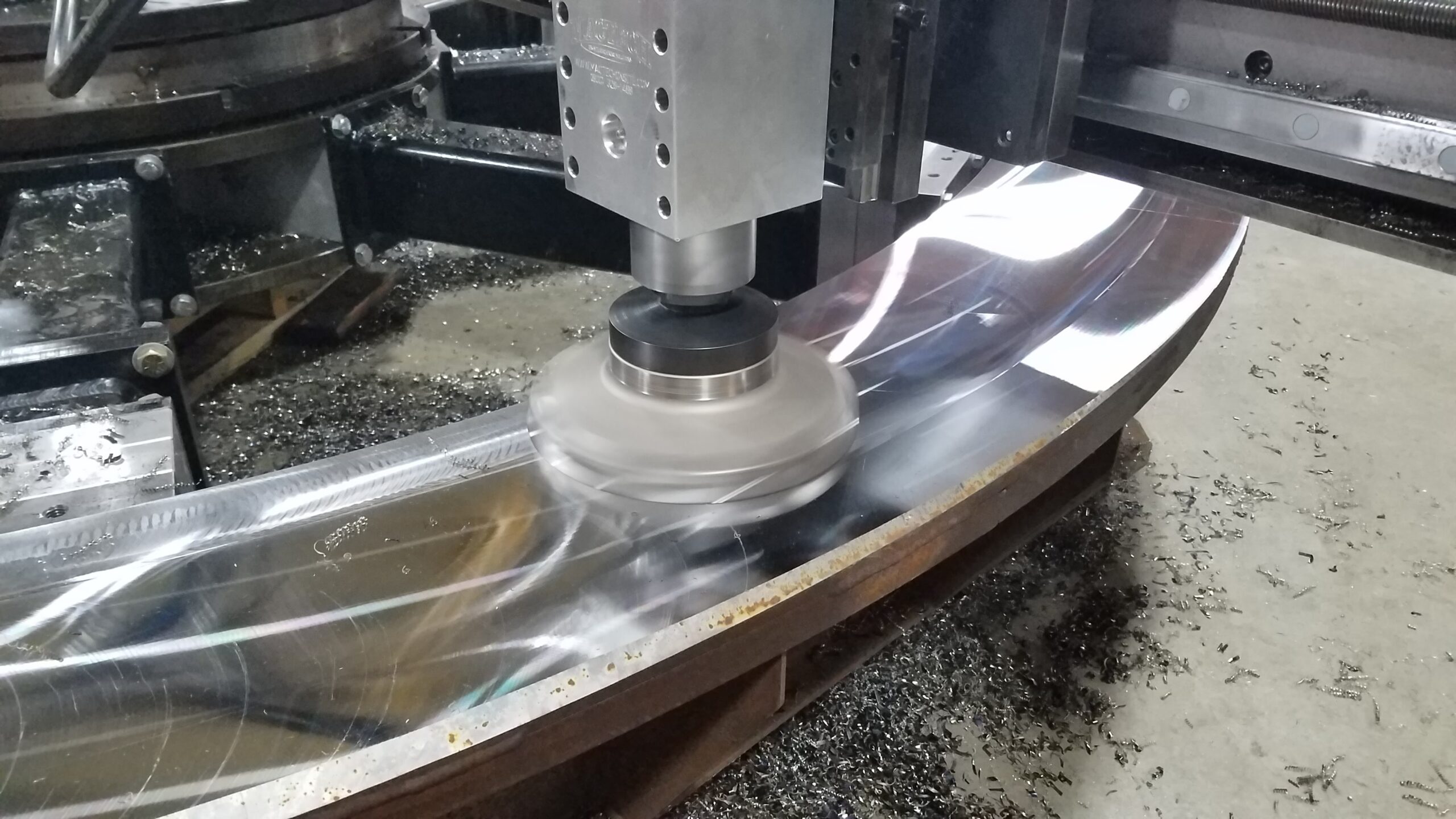

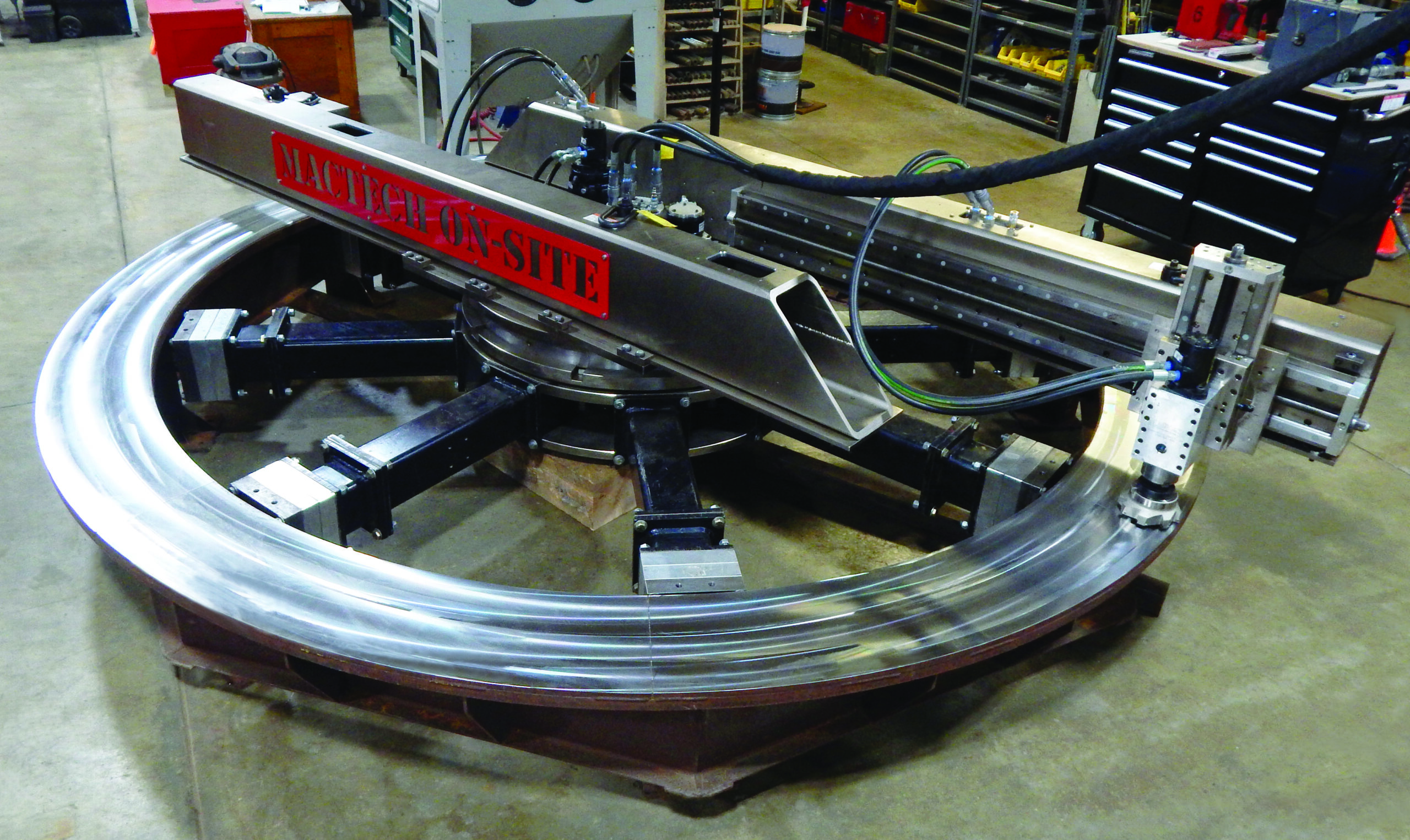

Our Large Diameter Facing Machine (LDFM) is made for precision flange facing, with single-point tooling and rotary milling at your disposal. Its adjustable rotary hub moves independently from the mounting legs for flat, accurate surfaces.
Got a complex facing job? Our LDFM makes it easy. With its flexible segmented legs, you’ll get the perfect fit across interior diameters. This means faster setups for flawless surfaces. And thanks to a rigid tubular beam design, it keeps vibration at bay for smooth results.
Interior Mounting Diameter
MIN: 55” – MAX: 185”
(MIN: 1397mm – MAX: 4699mm)
Cutting Range: Milling
MIN: 55” – MAX: 205”
(MIN: 1397mm – MAX: 5207mm)
w/ Extension Bracket
MIN: 55” – MAX: 229”
(MIN: 1397mm – MAX: 5816mm)
Cutting Range: Single Point Tooling
MIN: 55” – MAX: 204”
(MIN: 1397mm – MAX: 5182mm)
MIN: 55” – MAX: 224”
(MIN: 1397mm – MAX: 5689mm)
Head Travel
X-Axis: 59.5” – Z-Axis: 7”
(X-Axis: 511mm – Z-Axis: 177mm)
Weight
Max: 7500lbs
(3402kg)
Fill out our contact form and a Mactech representative will be in touch shortly.
