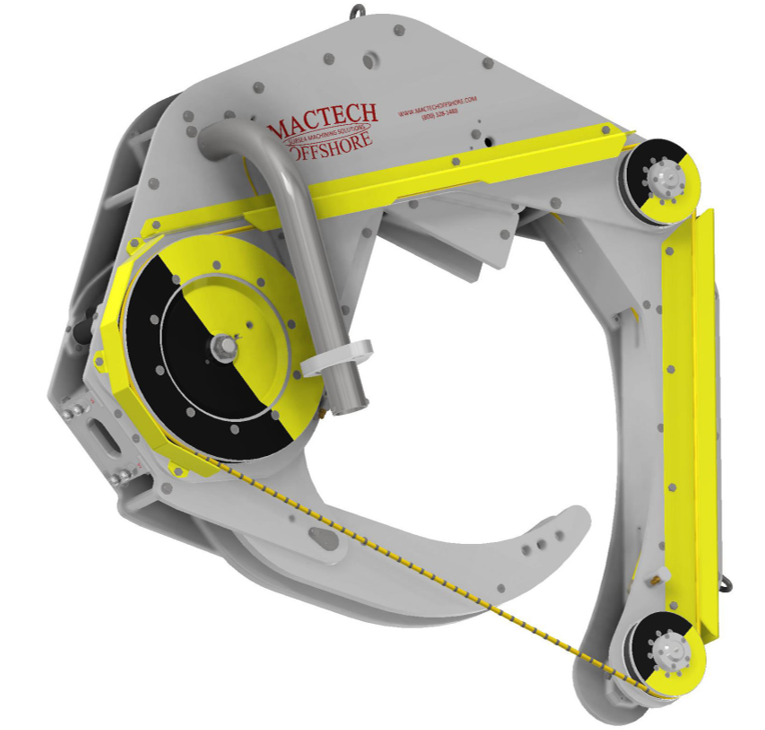

Cut-off Diamond Wire Saws

(Cuts 4.5” to 24”)

Built for surface and underwater use, Mactech’s portable cut-off diamond wire saws give you big cuts in a small footprint. Whether you’re working in tight spots or need quick maneuverability, these subsea cutting saws get you where the big tools simply can’t.

Order now
features
Brochure and Spec Sheets
Specifications

The diver's dream

Why wrestle with bulky equipment when a cut-off saw helps you get the job done fast? This saw for divers is lightweight and easy to set up, hitting the sweet spot for tough marine jobs. By using a hose reel from the surface, you can work up to 550 feet underwater. And on ROV units, hydraulic models can go as deep as 10,000 feet.

Key Features

  • Cutting range from 4.5” to 24”
  • Three models available for your project needs
  • Compact and lightweight eases handling in tight spaces
  • Cuts through everything — so far
  • ROV package for remote underwater operations

Cut-Off Diamond Wire Saw Specifications

DWS-16co-SS (0607-0019-SS) DWS-24co-SS (0607-0095-SS)

Cutting Capacity

Ø 4.5″-16″ (114-406mm)

Ø 10” – Ø 24” (254-610mm)

Operating Dimensions

44″ x 41″ x 11″ (1117 x 1041 x 279mm)

61” x 53” x 18” (1526 x 1445 x 408mm)

Operating Weight (Dry)

210lbs / 95kg

320lbs / 145kg

Operating Weight (Wet)

150lbs / 68kg

217lbs / 98kg

Drive: Hydraulic Requirements

15 gpm @ 3000 psi

57 lpm @ 207 bar

15 gpm @ 3000 psi

57 lpm @ 207 bar

Feed: Hydraulic Requirements

.5 gpm @ 500 psi

2 lpm @ 34 bar

.5 gpm @ 500 psi

2 lpm @ 34 bar

Clamp: Hydraulic Requirements

.5 gpm @ 1500 psi

2 lpm @ 103 bar

.5 gpm @ 1500 psi

2 lpm @ 103 bar
