(Machine ID: 2 inches to 16 inches) (Pipe OD: 0.5 inches to 16 inches)

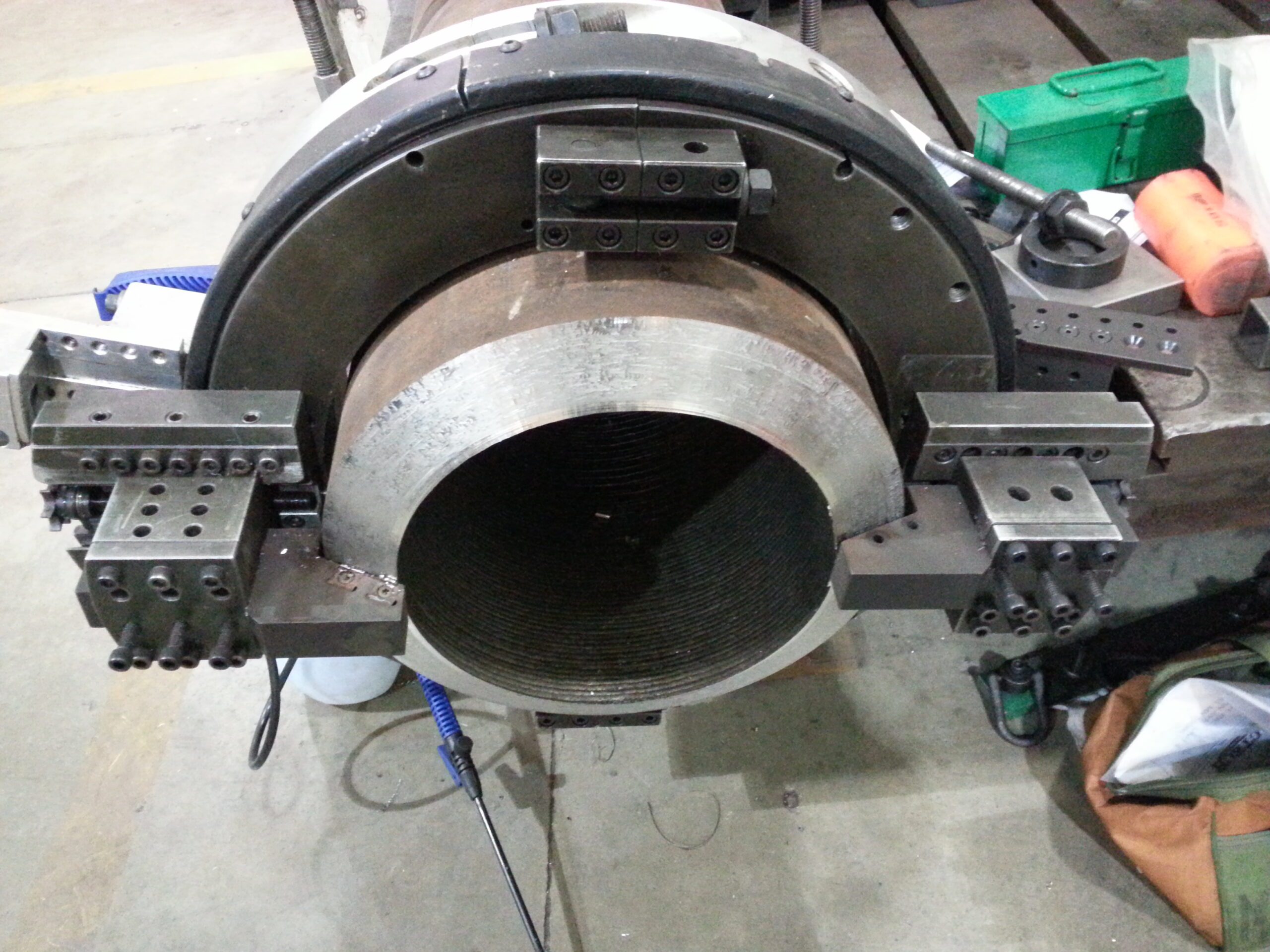

With IDs ranging from 2” to 16”, these portable lathes fit tight working conditions. Lightweight but rigid, they require minimal radial and axial clearance for easy installation on in-line, closed-loop pipe. Thanks to a variety of attachments and accessories, you’ll have the flexibility for any job.
Working in confined spaces shouldn’t mean compromising on performance. Our low-clearance clamshell cutting tools are built for precision and versatility, offering spark-free cutting and beveling across industries like oil and gas, power generation and shipbuilding. With more bearings than our competitors, this line handles 2” to 16” OD pipe like a champ, delivering reliability for in situ pipe cutting applications.
Machine I.D.
2.88 inch
(73 mm)
5.00 inch
(127 mm)
7.12 inch
(181 mm)
9.13 inch
(232 mm)
11.25 inch
(286 mm)
13.25 inch
(337 mm)
14.50 inch
(368 mm)
16.50 inch
(419 mm)
Machine O.D.
7.10 inch
(180 mm)
9.98 inch
(253 mm)
12.10 inch
(307 mm)
14.10 inch
(358 mm)
16.22 inch
(412 mm)
18.21 inch
(463 mm)
19.48 inch
(495 mm)
21.48 inch
(545 mm)
Rotating Components
7.03 inch
(179 mm)
12.75 inch
(324 mm)
14.87 inch
(378 mm)
18.88 inch
(479 mm)
21.00 inch
(533 mm)
23.00 inch
(584 mm)
24.25 inch
(616 mm)
28.25 inch
(718 mm)
Minimum Pipe O.D.
0.50 inch
(13 mm)
2.00 inch
(51 mm)
4.00 inch
(102 mm)
6.00 inch
(152 mm)
8.00 inch
(203 mm)
10.00 inch
(254 mm)
Maximum Pipe O.D.
4.75 inch
(121 mm)
6.75 inch
(171 mm)
8.75 inch
(222 mm)
10.75 inch
(273 mm)
14.00 inch
(356 mm)
16.00 inch
(406 mm)
Spec Sheet Download
802 Clamshell
804 Clamshell
806 Clamshell
808 Clamshell
810 Clamshell
812 Clamshell
814 Clamshell
816 Clamshell
